Double plancher Trans. T6 15- L1 - 270 - chauffage - tiroirs
D6581400010
- Width:
- 1650
- Depth:
- 2312
- Height:
- 270
- NetWeight:
- 25.99
Les dimensions sont en mm et les poids en kg.

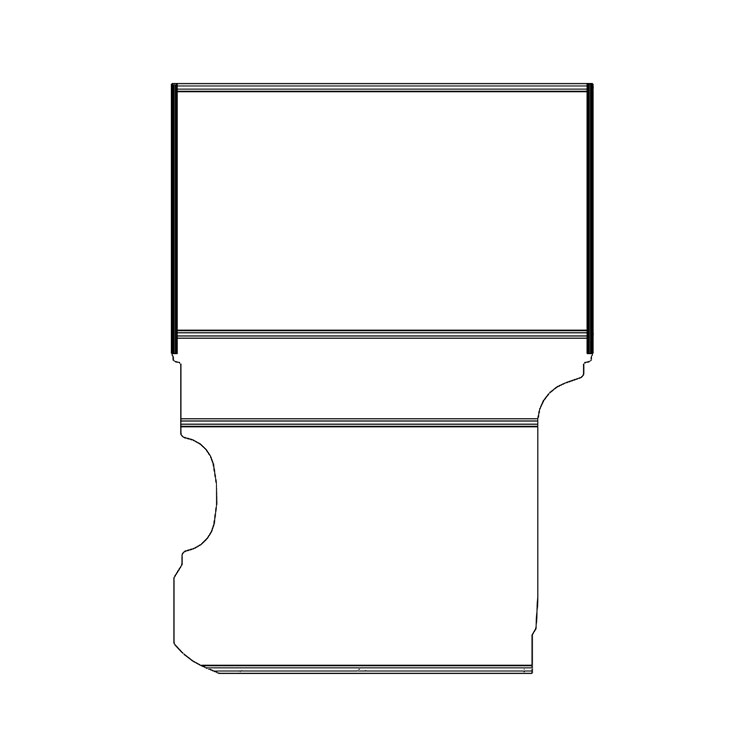

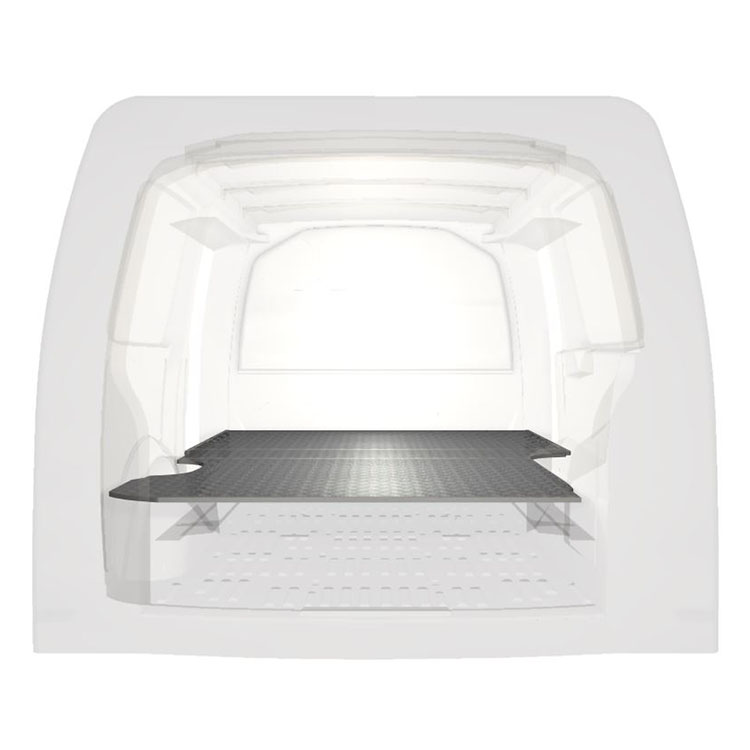

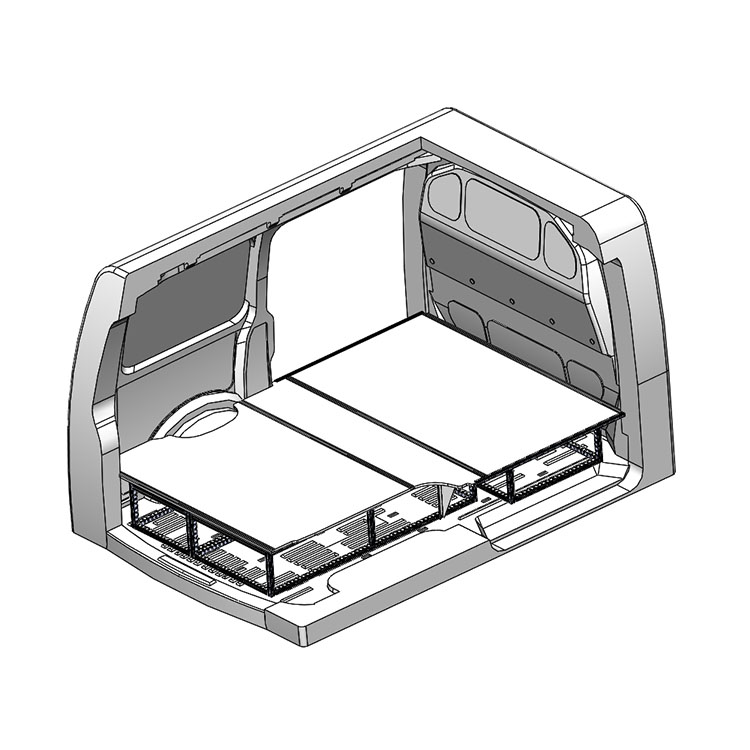

Double floor for a Volkswagen Transporter 2016- L1 with heater. The floor is designed to fit an extra-long drawer solution with one drawer unit 486x1458x270 and one 648x1458x270 coming out from the rear doors, and one drawer unit 648x1458x270 coming out from the side door.
The floor comes complete with transverse rails, edging strips and all brackets required for the installation.
The floor comes complete with aluminum transverse rails, edging strips and all brackets required for the installation.
The double floor is installed using Modul-System glue, which is supplied separately.
NOTE! Drawer units are not included and have to be ordered separately.
